APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty – AP-12SR
Stock:
$ 4449
:
:
:
All 2-Post Car Lifts
The lift is in stock in Chicago and Charlotte. It can be shipped to most states in South and Midwest. For all other states, we require 10% down (non-refundable) with a 60-90 day wait, and the remaining balance paid before we ship it to your location. Please call or email us at help@apluslift.com if you are interested.
Industry leading 3 YEAR WARRANTY (a $499 value!)
Single Point Safety Lock Release System

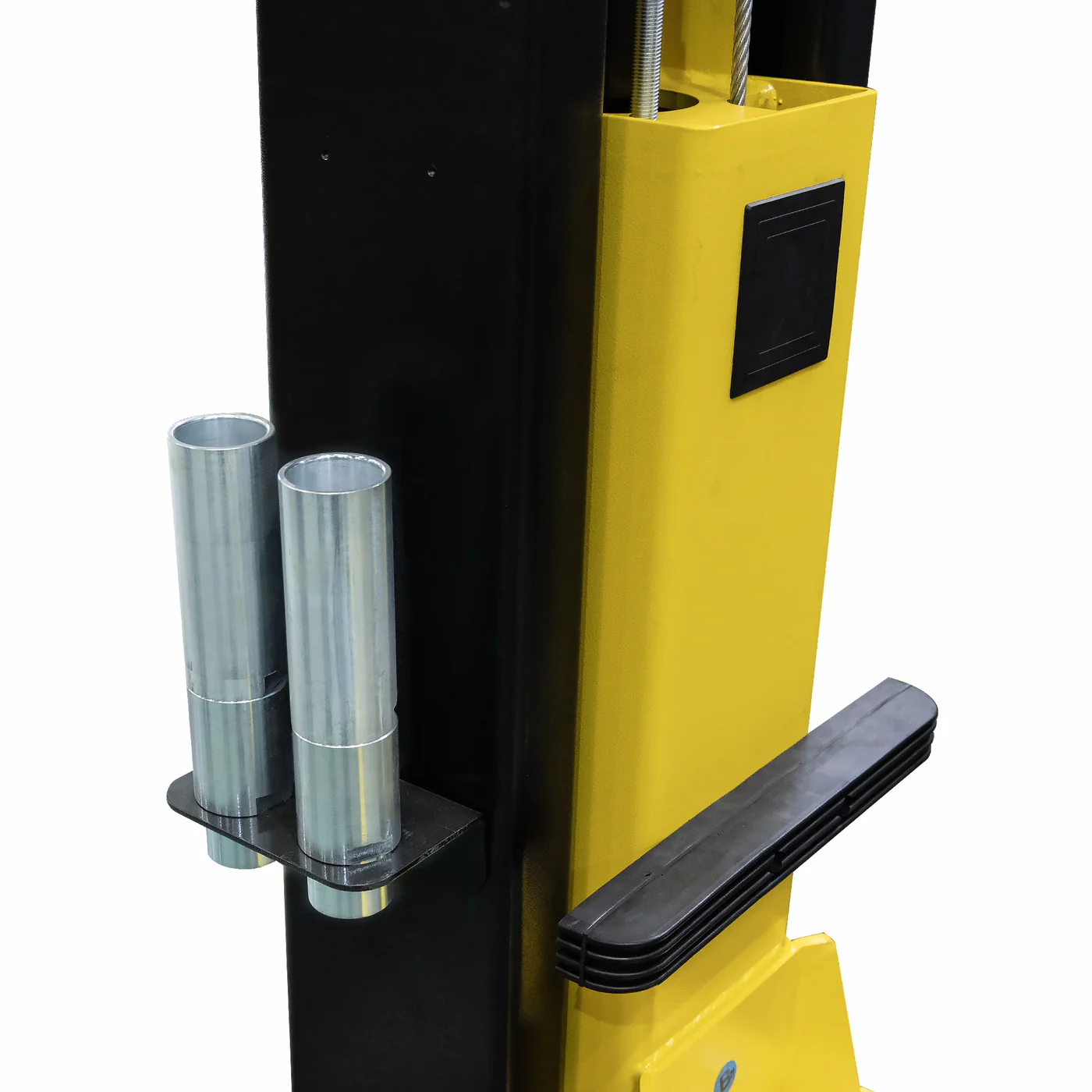

Two Set of 3″ and 6″ Tall Truck Adapters Included; 6’7″ Lift Height Maximum with Truck Adapters
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
All Robot Welded Structure with Durable Powder Coated Finish

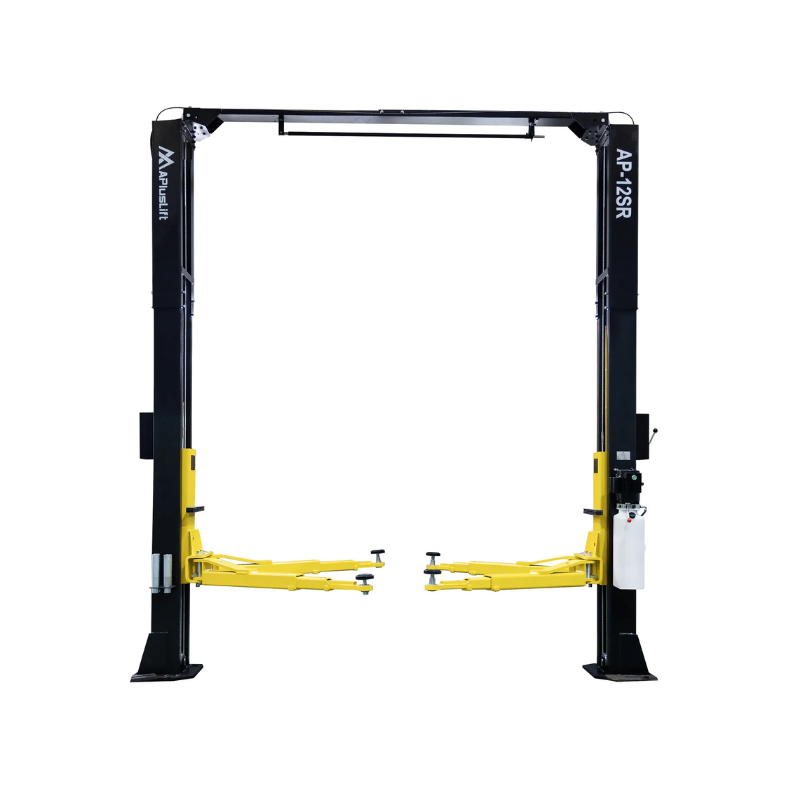

APlusLift AP-12SR is a 12000LB single point release overhead car lift (auto hoist) built with quality materials and good workmanship.
We are proud to offer an industry leading 3 year warranty for all parts (a $499 value)! We have all replacement and optional parts available for our lifts.
Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.
Warehouse Pickup Locations (Contact Us for $300 Discount): Tacoma (WA)
Frequently Asked Product, Order, and Shipping Questions and Technical Questions
Specifications | |||||||||
| Model | AP-12SR (This Model) | AP-10SR (for Comparison) | |||||||
| Manual | AP-12SR Manual | AP-10SR Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Single Point Release | Single Point Release | |||||||
| Warranty | 3 Years (36 Months) | 3 Years (36 Months) | |||||||
| Lifting Capacity | 12,000 LB | 10,000 LB | |||||||
| Overall Height | 165″ | 143 3/16″ | |||||||
| Overall Width | 149″ | 134 5/16″ | |||||||
| Maximum Lift height with Truck Adapters | 79″ | 81″ | |||||||
| Maximum Lift height without Truck Adapters | 70″ | 75″ | |||||||
| Minimum Height of Adjustable Pads from Ground | 4″ | 4″ | |||||||
| Drive Through Width (Carriage to Carriage) | 109″ | 100″ | |||||||
| Column to Column Width | 123″ | 109″ | |||||||
| Column Cross Section | 14 3/8″L x 7 13/16″W | 11″L x 7″W | |||||||
| Driving Mode | Dual hydraulic cylinders, direct drive | Dual hydraulic cylinders, chain drive | |||||||
| Motor | 220V Single Phase 3HP Inverter Motor (recommend a 30A breaker) | 220V Single Phase 3HP (recommend a 30A breaker) | |||||||
| Hydraulic Oil | 3-5 gallons AW32/AW46 (Not Included) | 3-5 gallons AW32/AW46 (Not Included) | |||||||
| Time to full rise | 75 seconds | 50 seconds | |||||||
| Shipping Weight | 2500 LB | 1400 LB and 120 LB | |||||||
| Shipping package size | 117″L x 22″W x 50″H |
| |||||||
| Arm Assembly | Symmetrical Arm Assembly | Combo (Symmetrical and Asymmetrical) Arm Assembly | |||||||

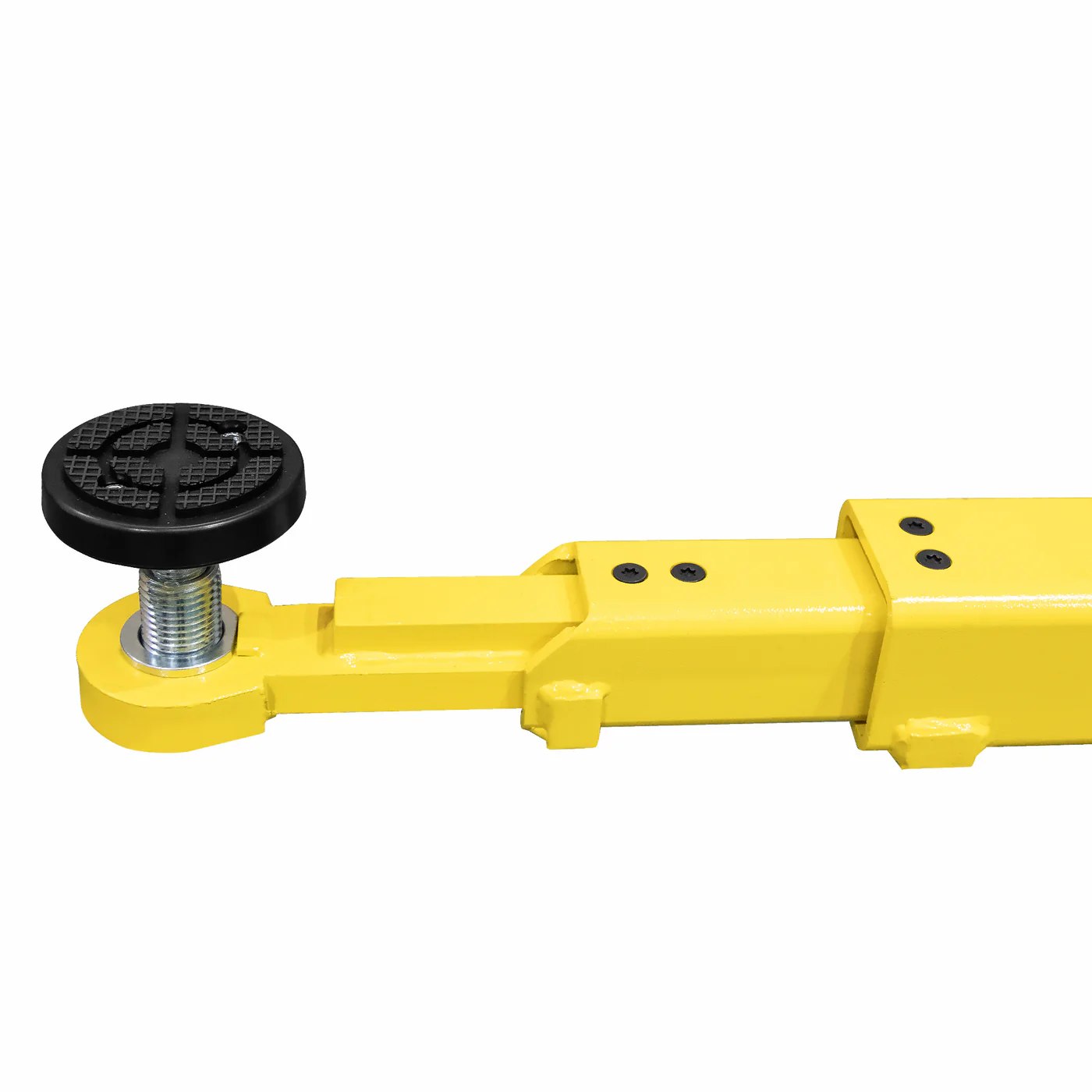

| Front Arms | Straight Front 3 Stage reach from 37 1/2″ to 72 3/16″ | Straight Front 3 Stage reach from 22 7/8″ to 42 5/8″ | |||||||
| Back Arms | Straight Rear 3 Stage reach from 37 1/2″ to 72 3/16″ | Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″ | |||||||
| Column Steel Thickness | 1/4″ | 13/64″ | |||||||
| Carriage Steel Thickness | 1/4″ | 15/64″ | |||||||
| Carriage Yoke Thickness | 3/4″ | 9/16″ | |||||||
| Arm Steel Thickness | 5/16″ | 15/64″ | |||||||
| Base Plate Steel Thickness | 13/16″ | 5/8″ | |||||||
| Truck Adapters (Height Extensions) | Two Sets: 3″ Tall and 6″ Tall | One Set: 4″ Tall | |||||||
| Other Parts Included |
| ||||||||
| Optional Parts | 2 3/4″ and 6″ Tall Truck Adapters | ||||||||
| Concrete Requirement | 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below) | ||||||||
Features
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage Material Q355 (ASTM A572), Stronger Than Normal Q235 Steel
- Lifting operation by pressing “UP” button on motor

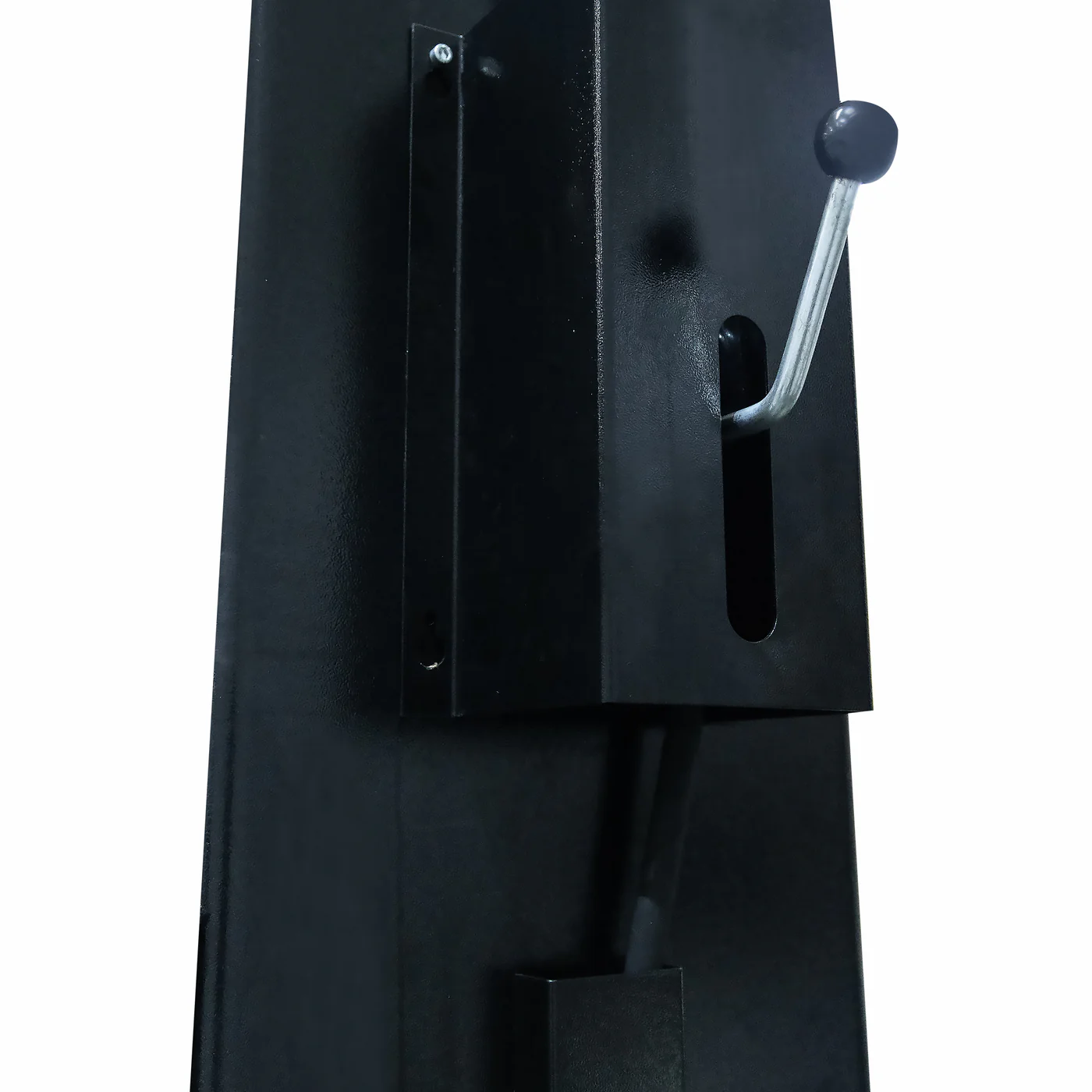

- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading
- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope

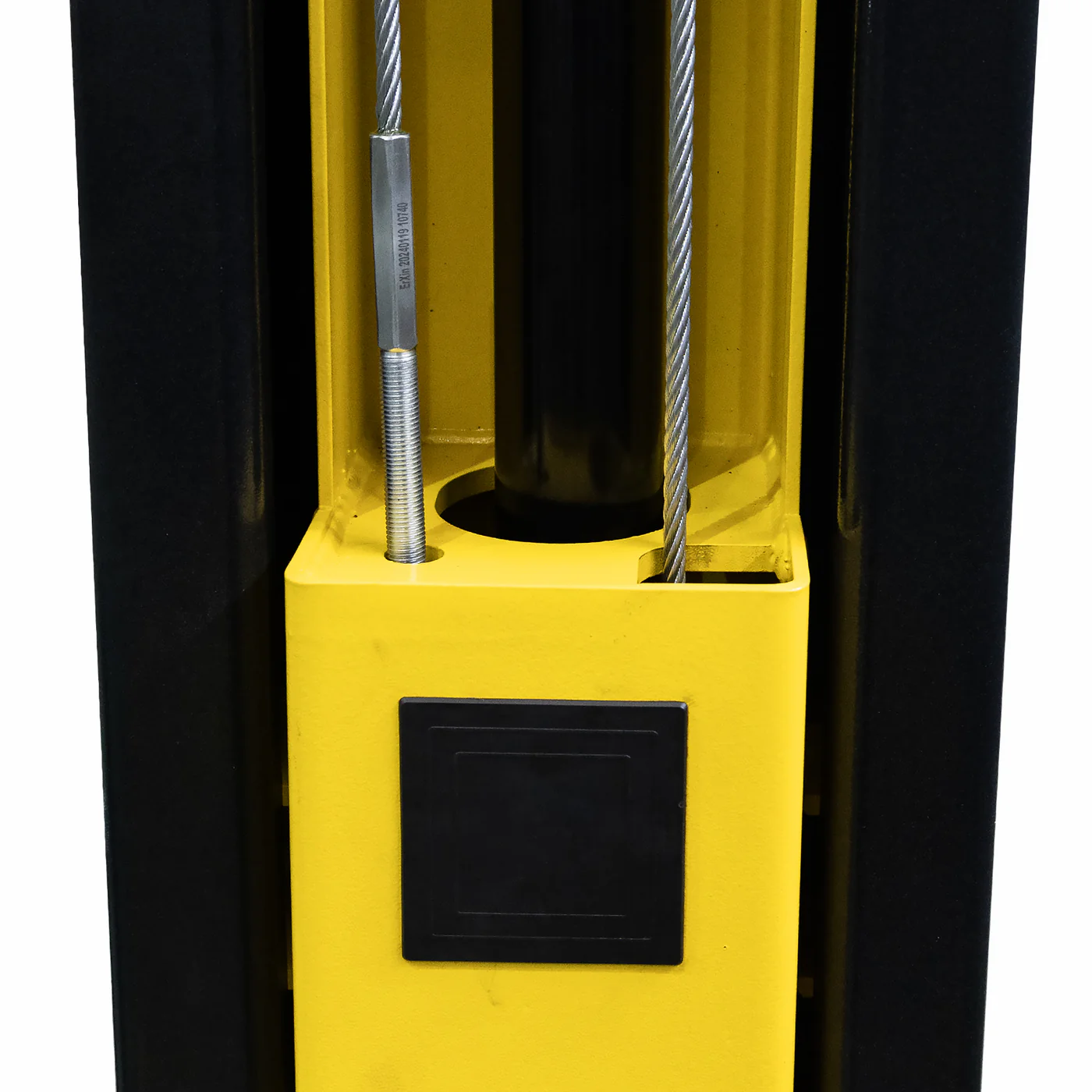

- Heavy duty 3/8″ diameter cable and 4 5/16″ pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
