APlusLift 14,000LB 4-Post Heavy Duty Lift AL-14C

APlusLift 14,000LB 4-Post Heavy Duty Lift AL-14C

📦

Stock:

$ 4500

$ 6590

Ends in:

:
:
:


All 4-Post Lifts and Jacks.

  • The lift is expected to be delivered in about 60-90 days starting from the day the lift is ordered. Note that the current HW-12S is all blue color (not gray-blue). We require a 10% down (non-refundable) and the remaining balance paid before we ship it to your location. Please email us if you are interested.

  • Industry leading 3 YEAR WARRANTY (a $499 value!)

  • Drive Through Width 106 9/32"; Lifting Height: 77 11/32"; Overall Dimensions 243 1/2"L x 134 3/8"W x 106 9/32"H

  • Free Approach Ramps

  • Time-Tested Car Lift Model for 30 Years

  • Powder Coated Finish with Superior Corrosion Resistance

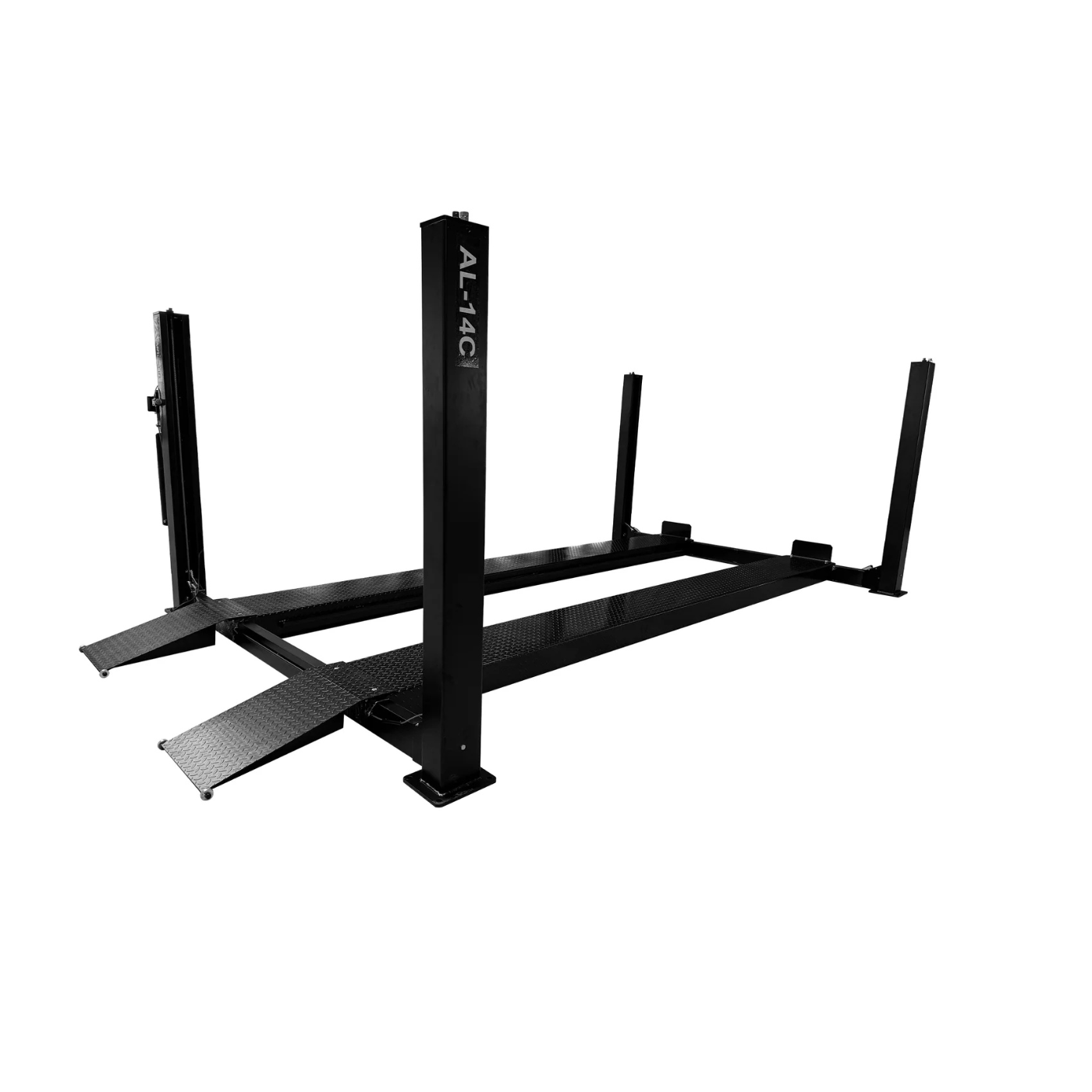

APlusLift AL-14C (HW-14AL) 4-Post 14,000LB Lift is designed and built to commercial grade standards and will provide many years of service. It is built with quality materials and good workmanship and is powder coated for superior corrosion resistance.

APlusLift AL-14C (HW-14AL) 4-Post 14,000LB Lift package includes  two approach ramps.

Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.

Warehouse Pickup Locations (Contact Us for $500 Discount): Charlotte (NC), Chicago (IL), Dallas (TX), Jacksonville (FL), Kansas City (MO), Las Vegas (NV), Los Angeles (CA), Mobile (AL), Ontario (OH), Portland (OR), Tacoma (WA), Virginia Beach (VA), and Watsontown (PA).

Frequently Asked Product, Order, and Shipping Questions and Technical Questions

Specifications and Features

ModelAL-14C(HW-14AL)
(This Model)		AL-12A
for Comparison
ManualHW-14AL ManualAL-12A Manual
Warranty3 Years (36 Months)3 Years (36 Months)
Lifting Capacity14,000 LB12,000 LB
Overall Length243 1/2"230"
Overall Width134 3/8"130"
Drive Through Width106 9/32"113 5/8"
Overall Height83"87 1/2"
Lifting Height77 11/32"72"
Clearance Under Runway70 27/32"67"
Runway Size203 15/16"L x 20"W196"L x 23"W
Width Between Runways43" Inside-Inside, 83" Outside-Outside34 1/2" Inside-Inside,80 3/8" Outside-Outside
Runway Gauge Steel15/64"6 (13/64")
Column Cross Section7 11/16"L x 6"W7"L x 5"W
Removable Approach Ramps Size27 31/32"L x 20 3/32"W32"L x 18 1/2"W
Lock Positions10 Positions
  • 20 15/32"
  • 25 19/32"
  • 31 1/2"
  • 37 13/32"
  • 43 5/16"
  • 49 7/32"
  • 55 1/8"
  • 61 1/32"
  • 66 15/16"
  • 72 27/32"
14 Positions:
  • 19 3/4"
  • 23 1/2"
  • 27 1/2"
  • 31 1/2"
  • 35 1/2"
  • 39 3/8"
  • 43 3/8"
  • 47 1/4"
  • 51 1/4"
  • 55 1/8"
  • 59"
  • 63"
  • 66 31/32"
  • 70 7/8"
Lifting Time100 seconds60 seconds
Motor220V Single Phase 3HP 10A (recommend a 30A breaker)220V Single Phase 3HP 10A (recommend a 30A breaker)
Hydraulic Oil4.3-5 gallons AW32/AW46 (Not Included)3-5 gallons AW32/AW46 (Not Included)
Concrete Thickness4" 3000psi4" 3000psi
Shipping Weight3,000 LB3,300 LB
Shipping package size214"L x 25"W x 31"H201"L x 28"W x 25"H
UsageParking/Storage/Service
FinishPowder Coated Finish with Superior Corrosion Resistance
CableHeavy duty 15/32" diameter cables that reduce high stress on synchronization process and increase cable life


Parts Included2 Removable Approach Ramps IncludedTwo Alignment Turn Plate Tables, One 6000LB Slidng Jack, Two Approach Ramps Included
